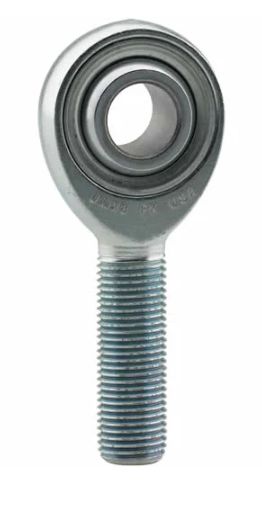

FK JMX Heim Joint JMX10T

• 3-PIECE CONSTRUCTION
• PTFE LINER STANDARD

• BALL
  • 52100 STEEL
  • Rc 56 MIN
  • HARD CHROME PLATED
• BODY AND RACE
  • ALLOY STEEL
  • HEAT TREATED
  • ZINC PLATED
  • CHROMATE TREATED

 If spacers are required for your application, please indicate so in the notes section of the checkout page.

This joint is what comes standard in all of our high clearance radius rods as well as an upgraded option on all Straight Radius Rods.

Left hand and Right hand avaible please select from the drop down.

Rod End Thread Size: 5/8-18 Right Hand

Rod End Attachment: Male threads

Rod End Construction: 3-piece

Rod End Style: PTFE lined

Thread Length: 1.625 in.

Rod End Head Bore Size: 0.625 in.

Rod End Head Diameter: 1.500 in.

Rod End Head Width: 0.562 in.

Rod End Ball Width: 0.750 in.

Rod End Static Load Capacity: 17,959 lbs.

PRICED INDIVIDUALLY
