Polaris RZR Heavy Duty 300M Ball Joints

WILL NOT WORK ON SUPERATV OR L&W CONTROL ARMS WITHOUT SPECIAL CAP NUTS

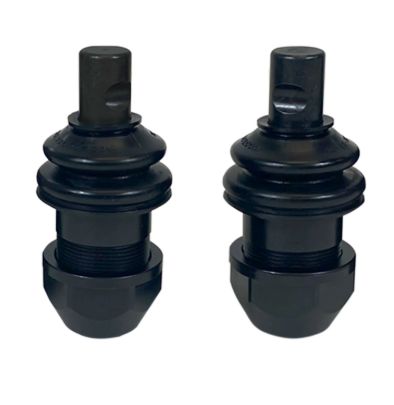

After over a year in the making we are proud to provide our solid 300M ball joints for the Polaris RZR.

Features include:

• Super strong Full 300M material
• Unique adjustment features
• Unique greasing features that ensure long wear
• State of the art Nitride treating for wear resistance and anti friction

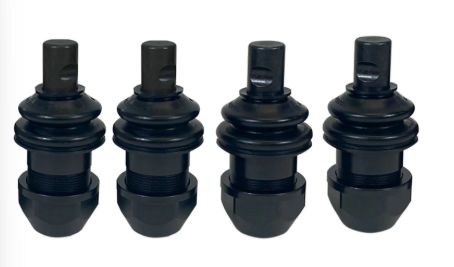

• Sold as a complete set of 4
• FULL MANUFACTURE LIFETIME WARRANTY

These joints have been rigorously tested, beat, and pushed well beyond what most would call normal or even heavy duty use. These ball joints have been used in several UTV platforms running various race series and have performed very well under pressure.

Our ball joints are composed of 7 separate parts put together to form one unit. Those parts are as follows

• Boot: Used for keeping contaminants out of the indie of the joint itself.
• Stem: The main component in the ball joint where all the pressure is transferred to which connects to the knuckle.
• Body: The component that holds the stem in place
• Wear Plate: A small convex disc that is used as the wearable item just under the stem. It is used to transfer torque from the adjustment nut to the stem.
• Adjustment nut: This is the item you will adjust as the unit wears to maintain a tight ball joint. The adjustment nut threads into the main body and is used to maintain pressure on the wear plate so that the joint stays tight.
• Locking Cap: The locking cap is responsible for holding the ball joint assembly into the control arm itself.
• Adjustment Nut Jamb Bolt: This component is used to jumb the adjustment nut into place. Once desired tension is set on the stem via the adjustment nut, this jamb bolt is used to hold the adjustment nut and wear plate in place.

The most unique and proprietary part of our ball joints is the way in which we deliver grease to the stem itself. Through all 4 components which make up the inside of the ball joint their is a hole that is drilled through them allowing grease to be inserted into the flush mount grease fitting in the adjustment nut jamb bolt and pass all the way to the ball joint stem. In the stem there is a cross drilled hole that then allows grease to exit the side of the stem and grease the stem all the way around via a grease groove around the outside. Once grease is on the outside of the stem we have a unique spiral groove that when the ball joint is pivoted then carries the grease to the upper most portion of the ball joint. Ensuring that the entire stem is greased to keep wear down and even more importantly keep water and other contaminants out.

Every component in our ball joint was designed and machined in house from U.S. made 300M material. After all components have been checked they then proceed on to receive a very high quality and durable Liquid Nitride Treating. This treating is used to further harden the material and give it another layer of protection as an anti friction coating and as a case hardening treatment as well. This coating is applied by one of the countries top nitride coating facilities who's treatment process has been hand picked from companies like Glock, Sig Sauer, Barret, along with countless NASCAR race teams and aerospace industry leaders. Needless to say, when we selected a coating for our joints, we wanted the best of the best.

All joints are protected by a FULL LIFETIME MANUFACTURE WARRANTY against workmanship defects AND damages including broken items. Every component is also available for purchase separately so that you can service the ball joints if you ever wear  them out.
